sparkle::Node Class Reference
[Sparkle Library]

Basic node type. More...

#include <node.h>

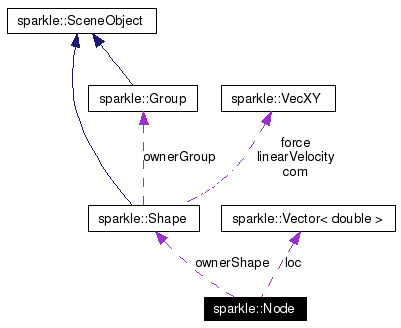

Collaboration diagram for sparkle::Node:

[legend]List of all members.

Public Member Functions
ctors/dtor
	Node (double initialX, double initialY, Shape *newOwner)
	~Node ()
Modifiers
void	applyForce (double xForce, double yForce)
void	setPosition (double newX, double newY)
void	addEdge (Edge *newEdge)
void	setOwner (Shape *newOwner)
Getters
Not necessarily const
double	getX () const
double	getY () const
Vector< double >	getVector () const
Shape *	owner () const
Protected Attributes
sparkle::Vector< double >	loc
Shape *	ownerShape
std::vector< Edge * >	edges

---

Detailed Description

Basic node type.

The Most basic component of the physics engine

---

Constructor & Destructor Documentation

sparkle::Node::Node (  double  initialX, double  initialY, Shape *  newOwner )  [inline]

Constructs node at x,y with optional owner newOwner Parameters: initialX  Initial x coord of node initialY  Initial y coord of node newOwner  Shape to own this node

Node::~Node (   )

Deconstructor

---

Member Function Documentation

void Node::applyForce (  double  xForce, double  yForce )

Apply a force to the node. This function will notify the parent sparkle::Shape of the force Parameters: xForce  Force in the positive x direction yForce  Force in the positive y direction

void Node::setPosition (  double  newX, double  newY )

Change the position of the node Parameters: newX  New x coord of node newY  New y coord of node See also: double Node::getX() const double Node::getY() const VecXY Node::getCoords() const

void Node::addEdge (  Edge *  newEdge  )

Lets this node know it's a member of the edge Parameters: newEdge  POinter to the new edge

void Node::setOwner (  Shape *  newOwner  )

Set the owner of the node since a node by itself is rather useless Parameters: newOwner  The new owner of the node

double sparkle::Node::getX (   )  const [inline]

Retrieve x-coord Returns: x coord of node See also: double Node::getY() const VecXY Node::getCoords() const void Node::setPosition(double newX, double newY)

double sparkle::Node::getY (   )  const [inline]

Retrieve y-coord Returns: y coord of node See also: double Node::getX() const VecXY Node::getCoords() const void Node::setPosition(double newX, double newY)

Vector<double> sparkle::Node::getVector (   )  const [inline]

Returns: Vector of location

Shape* sparkle::Node::owner (   )  const [inline]

Get the owner of the node. If there is no owner, it will return 0. Returns: A pointer to the owner of the node

---

Member Data Documentation

sparkle::Vector<double> sparkle::Node::loc [protected]

Vector of node

Shape* sparkle::Node::ownerShape [protected]

Owner of node

std::vector<Edge*> sparkle::Node::edges [protected]

Edges connected to this node

---
