sparkle::Shape Class Reference
[Sparkle Library]

Basic shape type. More...

#include <shape.h>

Inherits sparkle::SceneObject.

Inherited by sparkle::Square.

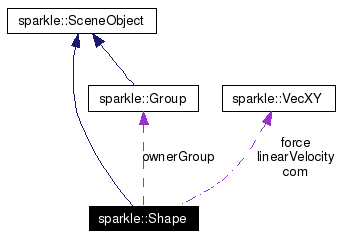

Collaboration diagram for sparkle::Shape:

[legend]List of all members.

Public Member Functions
ctors/dtor
	Shape ()
	~Shape ()
Modifiers
virtual int	addNode (double x, double y)
virtual int	removeNode (Node *nodeToRemove)
virtual int	addEdge (int nodeIndex1, int nodeIndex2)
void	setName (std::string newName)
void	setGroup (Group *newGroup)
void	resetVolatileVars ()
void	addForce (double xNodeForce, double yNodeForce, Node *childNode)
void	applyUniformForce (double xForce, double yForce)
void	updateStaticVars (double deltaTime)
Getters
Not necessarily const
Node *	nodeAt (int index)
virtual int	numOfNodes () const
virtual int	numOfEdges () const
double	getMass () const
double	getComX () const
double	getComY () const
VecXY	getCom () const
Vector< double >	getComVector () const
double	getMomentOfInertia ()
std::string	name () const
Group *	group () const
Protected Member Functions
void	calculateCOM ()
void	updateAttributes ()
Protected Attributes
std::vector< Node >	nodes
std::vector< Edge >	edges
Group *	ownerGroup
std::string	shapeName
double	mass
double	momentOfInertia
sparkle::VecXY	linearVelocity
sparkle::VecXY	com
double	angularVelocity
double	angle
sparkle::VecXY	force
double	torque

---

Detailed Description

Basic shape type.

A basic convex polygon grouping of nodes with an associated mass

---

Constructor & Destructor Documentation

Shape::Shape (   )

Creates a shape with no nodes

Shape::~Shape (   )

Deconstructor

---

Member Function Documentation

int Shape::addNode (  double  x, double  y )  [virtual]

Add node to shape to x,y Parameters: x  X-coord y  Y-coord Returns: Number of nodes Reimplemented in sparkle::Square.

int Shape::removeNode (  Node *  nodeToRemove  )  [virtual]

Remove node from shape Parameters: nodeToRemove  Node to remove Returns: Number of nodes Reimplemented in sparkle::Square.

int Shape::addEdge (  int  nodeIndex1, int  nodeIndex2 )  [virtual]

Create an edge between the nodes at the two indices Parameters: nodeIndex1  Index of start node nodeIndex2  Index of end node Returns: Number of edges Reimplemented in sparkle::Square.

void sparkle::Shape::setName (  std::string  newName  )  [inline]

Set the name of the shape Parameters: newName  New name

void Shape::setGroup (  Group *  newGroup  )

Set the group of the shape Parameters: newGroup  The new group of the shape

void Shape::resetVolatileVars (   )

Resets instantaneous variables which must be reset between ticks Postcondition: force.x = 0 force.y = 0 torque = 0 Todo: Link post conds to attributes

void Shape::addForce (  double  xNodeForce, double  yNodeForce, Node *  childNode )

When a force is applid to a node, it will call this function to calculate the effect it will have on the shape Parameters: xNodeForce  Force in x direction yNodeForce  Force in y direction childNode  Pointer to caller

void sparkle::Shape::applyUniformForce (  double  xForce, double  yForce )

Apply a force to whole shape so only linear momentum is changed Parameters: xForce  Force in x direction yForce  Force in y direction

void Shape::updateStaticVars (  double  deltaTime  )

Once the forces have been applied to all the node, this will calculate what actually happens to the shape. Parameters: deltaTime  Time passed since last call Todo: Make the delta a static member variable to it doesnt need to be passed

Node* sparkle::Shape::nodeAt (  int  index  )  [inline]

Parameters: index  The index of the node within the shape Returns: A pointer to the node at index

virtual int sparkle::Shape::numOfNodes (   )  const [inline, virtual]

Returns: Number of nodes in shape Reimplemented in sparkle::Square.

virtual int sparkle::Shape::numOfEdges (   )  const [inline, virtual]

Returns: Number of edges in shape

double sparkle::Shape::getMass (   )  const [inline]

Returns: Mass of shape

double sparkle::Shape::getComX (   )  const [inline]

Returns: X-coord of centre of mass

double sparkle::Shape::getComY (   )  const [inline]

Returns: Y-coord of centre of mass

VecXY sparkle::Shape::getCom (   )  const [inline]

Returns: VecXY of centre of mass

Vector<double> sparkle::Shape::getComVector (   )  const [inline]

Returns: Vector of centre of mass

double Shape::getMomentOfInertia (   )

Will recalculate the moment of inertia before returning Returns: Moment of inertia

std::string sparkle::Shape::name (   )  const [inline]

Returns: The name of the shape

Group* sparkle::Shape::group (   )  const [inline]

Get the group of the shape. If it is not in a group, it will return 0. Returns: A pointer to the group of the shape

void Shape::calculateCOM (   )  [protected]

Calculate the CoM of the shape

void Shape::updateAttributes (   )  [protected]

Recalculate the CoM and Moment of inertia of the shape

---

Member Data Documentation

std::vector<Node> sparkle::Shape::nodes [protected]

The nodes owned by the shape

std::vector<Edge> sparkle::Shape::edges [protected]

The Edges connecting the nodes

Group* sparkle::Shape::ownerGroup [protected]

If this shape is in a group, it will be referenced here

std::string sparkle::Shape::shapeName [protected]

Name of shape

double sparkle::Shape::mass [protected]

Mass in kilogrammes of the shape

double sparkle::Shape::momentOfInertia [protected]

Moment of inertia of the shape. Must be calculated through sparkle::momentOfInertia(...)

sparkle::VecXY sparkle::Shape::linearVelocity [protected]

Current linear velocity of shape

sparkle::VecXY sparkle::Shape::com [protected]

Current CoM of shape

double sparkle::Shape::angularVelocity [protected]

Current angular velocity of shape

double sparkle::Shape::angle [protected]

Current angle of shape relative to starting position

sparkle::VecXY sparkle::Shape::force [protected]

Tick-cumulative force

double sparkle::Shape::torque [protected]

Tick-cumulative torque

---
