sparkle::Square Class Reference
[Sparkle Library]

Example shape class. More...

#include <square.h>

Inherits sparkle::Shape.

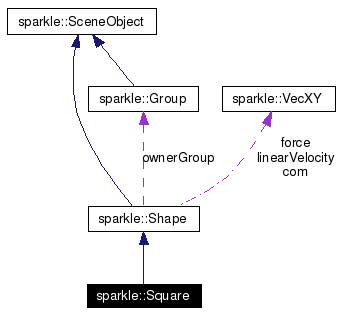

Collaboration diagram for sparkle::Square:

[legend]List of all members.

Public Member Functions
ctors/dtor
	Square (int size=20)
Modifiers
int	addNode (double x, double y)
int	removeNode (Node *nodeToRemove)
int	addEdge (int nodeIndex1, int nodeIndex2)
Getters
Not necessarily const
int	numOfNodes () const

---

Detailed Description

Example shape class.

Example implementation of the shape class to create a simple square. The Square will be created with the first corner at the origin and the rest of the points in a square parallel to the axis in the positive quadrant.

---

Constructor & Destructor Documentation

Square::Square (  int  size = 20  )

Constructor Parameters: size  Length of the side of the square

---

Member Function Documentation

int Square::addNode (  double  x, double  y )  [virtual]

Overridden as no nodes can be added to a square after creation Parameters: x  X-coord y  Y-coord Returns: Number of nodes Attention: This will have no effect once there are 4 nodes Reimplemented from sparkle::Shape.

int Square::removeNode (  Node *  nodeToRemove  )  [virtual]

Overridden as no nodes can be removed from a square after creation Parameters: nodeToRemove  Node to remove Returns: Number of nodes Attention: This will have no effect Reimplemented from sparkle::Shape.

int Square::addEdge (  int  nodeIndex1, int  nodeIndex2 )  [virtual]

Overridden as no edges can be added to a square after creation Parameters: nodeIndex1  Index of start node nodeIndex2  Index of end node Returns: Number of edges Attention: This will have no effect Reimplemented from sparkle::Shape.

int sparkle::Square::numOfNodes (   )  const [inline, virtual]

Overridden to speed up slightly Returns: Number of nodes in shape Reimplemented from sparkle::Shape.

---
